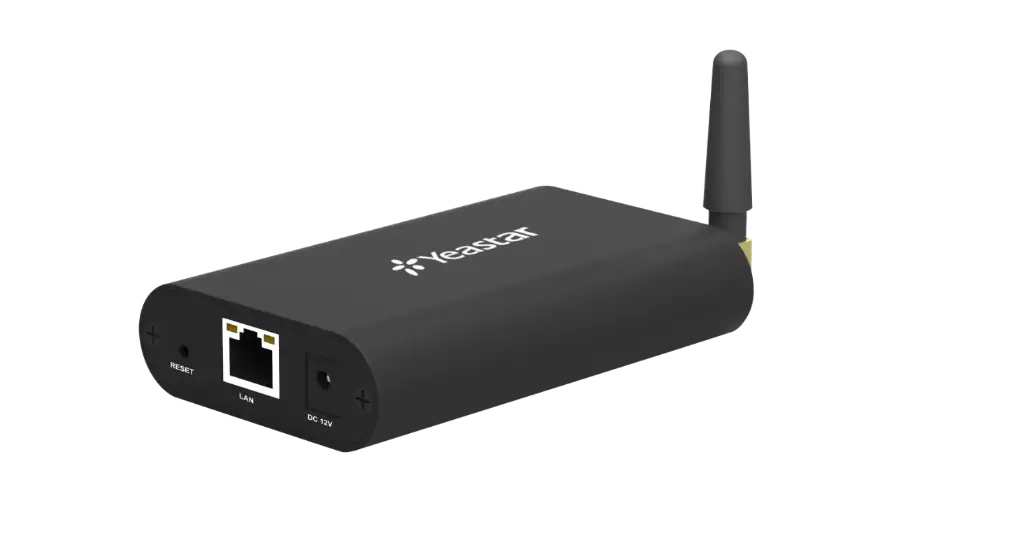

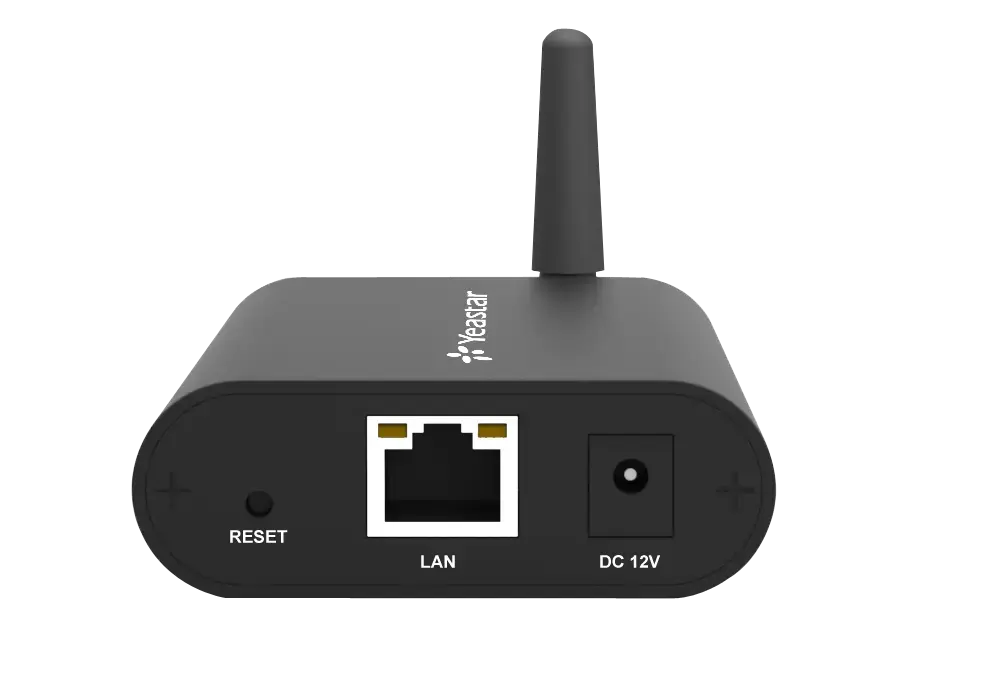

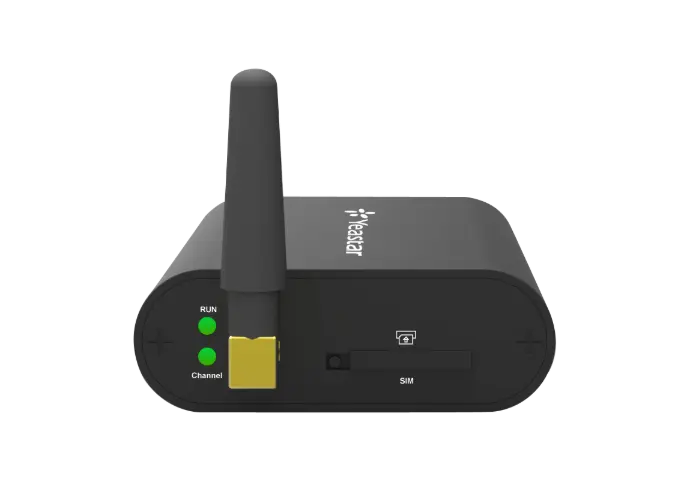

Yeastar TG100 GSM VoIP Gateway

The Yeastar Neogate TG100 is a compact and powerful GSM VoIP gateway designed to bridge the gap between traditional PSTN networks and IP-based communication systems.
This device offers a seamless integration of GSM/3G/4G cellular networks with your VoIP infrastructure, providing reliable and cost-effective voice and SMS communication.
Yeastar Kenya Yeastar VoIP Gateways Yeastar Neogate TG100
0.00 KSh 0.00 KSh Tax Excluded
19,200.00 KSh Tax Excluded

Add to cart

Terms and Conditions

Warranty Terms

We accept bank transfers, credit cards, PayPal, and M-Pesa as payment methods.

Contact us
Documents
Yeastar TG Series Datasheet

Yeastar Neogate TG100 GSM VoIP Gateway

The Yeastar Neogate TG100 is a GSM gateway for connecting GSM networks to VoIP networks for two-way communication. The TG100 is ideal for connecting soft switches and IP-PBX's to GSM network, and is the best fallback solution for landline outages.

NeoGate TG100 VoIP Gateway overview

The TG100 Gateway from Yeastar can be a cost-saving addition for a backup option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it's easy to install with a web based GUI and simple to integrate.

Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, callback function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web based configuration, and it's easy to integrate and easy to install.

Yeastar TG100 Details

Features and Specifications

Interfaces

  • 1 GSM Port
  • 1 x 10/100 Mbps Ethernet Interface
  • Supports UDP, TCP, TLS, SRTP
  • Voice codecs: G.711, G.726, G.729A, GSM, ADPCM, Speex
  • NAT Traversal: Static NAT, STUN

Telephony Features

  • Call Detail Record (CDR)
  • Call Duration Limitation
  • Call Progress Tone Generation
  • Call Transfer
  • Caller ID/CLIR
  • Gain Adjustment
  • Hotline
  • Session Timer
  • SIP Response Code Switch

Call routing and Management

  • 1 Stage/2 Stage Dial
  • Call Back
  • Incoming /Outgoing Routing rules
  • VoIP Trunk Group
  • GSM/CDMA/UMTS Ports Group Manage

Advanced Features

  • Network Attack Alert
  • Packet Capture
  • Real Open API Protocol (Based on Asterisk)
  • Session Timer

System Administration and Maintenance

  • Firmware upgrade by HTTP/TFTP
  • Configure backup/restore
  • NTP
  • System Logs
  • Web based configuration

Messaging and Data Services

  • Block List
  • IP Blocklist
  • Open API for SMS and USSD
  • Send Bulk SMS
  • SMS Center
  • SMS Sending and Receiving
  • USSD

Package Contents

Your Gateway Box comes with:

Your Gateway

  • TG100 VoIP Gateway console

Accessories

  • Power Cable - AC 100~240V/50~60Hz (DC 12V, 1A)
  • Ethernet Cable
  • 1x Antenna

Additional Items

  • User Guide Manual
